A 12V 100Ah battery is one of the most commonly used batteries for home inverters, UPS systems, and small solar power setups. Its popularity comes from the perfect balance it offers between storage capacity, affordability, compatibility, and ease of installation. However, many users purchase a 12V 100Ah battery without fully understanding its technical specifications, real backup capability, charging limits, and ideal applications—often leading to poor performance or reduced battery life.

This guide explains the complete 12V 100Ah battery specification in a clear, practical, and technically accurate way, helping homeowners, installers, and solar users make informed decisions.

What Does 12V 100Ah Mean?

The battery rating consists of two key components:

• 12V (Voltage):
  Indicates the nominal operating voltage of the battery. Most residential inverters, UPS systems, and solar charge controllers are designed to work with 12V batteries.

• 100Ah (Ampere-Hour):
  Represents the battery’s storage capacity. A 100Ah battery can theoretically deliver:

  • 100 amps for 1 hour

  • 50 amps for 2 hours

  • 10 amps for 10 hours

In real-world conditions, actual output depends on load, inverter efficiency, and safe depth of discharge.

Core Technical Specifications of a 12V 100Ah Battery

Below are the standard specifications you should expect from a quality 12V 100Ah battery:

Parameter	Typical Value
Nominal Voltage	12 Volts
Rated Capacity	100 Ah
Energy Capacity	1200 Wh (1.2 kWh)
Charging Voltage (Bulk)	14.2V – 14.6V
Float Voltage	13.5V – 13.8V
Cut-off Voltage	10.5V – 11.0V
Recommended Charging Current	10A – 20A
Operating Temperature	5°C to 45°C
Cycle Life (Tubular)	1200–1800 cycles

Energy Capacity Explained (Practical View)

Theoretical energy stored in a 12V 100Ah battery:

12V × 100Ah = 1200 Wh (1.2 units)

However, not all of this energy is usable due to:

• Inverter efficiency losses (10–15%)

• Safe discharge limits for battery protection

Usable energy is typically 900–1000 Wh, which is about 1 unit of electricity.

Understanding this distinction is critical when calculating backup time.

Backup Time of a 12V 100Ah Battery

Backup duration depends on connected load:

Load (Watts)	Approx Backup Time
100W	8–9 hours
200W	4–4.5 hours
300W	2.5–3 hours
400W	~2 hours
600W	~1 hour

A single 12V 100Ah battery is best suited for light to moderate household loads, not heavy appliances.

Types of 12V 100Ah Batteries

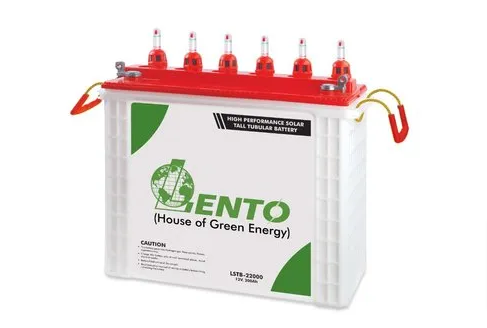

1. Tubular Battery

The most popular choice for home inverters and solar systems.

Key features:

• Long lifespan (5–7 years)

• Handles deep discharge well

• Ideal for frequent power cuts

• Requires periodic distilled water topping

2. SMF (Sealed Maintenance-Free) Battery

Commonly used in UPS and office setups.

Key features:

• Maintenance-free

• Compact design

• Lower tolerance to deep discharge

• Shorter lifespan than tubular batteries

3. Lithium 12V 100Ah Battery

A premium and modern alternative.

Key features:

• High usable capacity (up to 95%)

• Lightweight and compact

• Fast charging

• Long cycle life (3000+ cycles)

• Higher upfront cost

Charging Specifications & Best Practices

Proper charging directly affects battery life.

• Recommended charging current: 10–15A

• Maximum charging current: 20A

• Bulk charging voltage: ~14.4V

• Float charging voltage: ~13.6V

Overcharging, undercharging, or using an incompatible inverter is a common cause of premature battery failure.

Solar System Compatibility

A 12V 100Ah battery works well with:

• 300W–600W solar panels

• 12V PWM or MPPT charge controllers

For solar applications:

• Tubular or lithium batteries are strongly recommended

• SMF batteries are not ideal for daily solar cycling

Suitable Applications

A 12V 100Ah battery is ideal for powering:

• LED lights

• Ceiling fans

• Television

• Wi-Fi router

• Laptops and desktops

• CCTV systems

• Small offices and shops

It is not suitable for running air conditioners, electric geysers, or heavy industrial loads without multiple batteries.

Battery Life Expectancy

Battery Type	Average Lifespan
Tubular	5–7 years
SMF	3–4 years
Lithium	8–10 years

Proper maintenance, correct charging, and controlled discharge significantly improve lifespan.

Final Conclusion:-

A 12V 100Ah battery is a reliable, versatile, and cost-effective power storage solution for home inverters, UPS systems, and small solar installations. When selected and used correctly, it offers stable backup, long service life, and excellent compatibility with standard residential power systems.

Understanding its specifications—rather than just capacity—ensures better performance, longer battery life, and higher return on investment.

FAQ-

1. What is the actual capacity of a 12V 100Ah battery?

A 12V 100Ah battery has a theoretical capacity of 1.2 kWh, but the usable capacity is around 0.9–1 kWh after accounting for inverter losses and safe discharge limits.

2. How long can a 12V 100Ah battery run household appliances?

It can power lights, fans, TV, Wi-Fi router, and laptops for several hours, depending on the total connected load and battery condition.

3. Is a 12V 100Ah battery sufficient for a home inverter?

Yes, it is suitable for basic home backup with light loads, but multiple batteries are needed for larger homes or heavy appliances.

4. How many solar panels are required to charge a 12V 100Ah battery?

Typically, 300W to 600W of solar panels are sufficient to charge a 12V 100Ah battery efficiently in good sunlight conditions.

5. What is the ideal charging current for a 12V 100Ah battery?

The recommended charging current is 10–15 amps, while the maximum safe limit is 20 amps.

6. Which type of 12V 100Ah battery is best for solar systems?

Tubular and lithium batteries are best for solar applications because they handle deep discharge and frequent cycling better than SMF batteries.

7. Can a 12V 100Ah battery run a refrigerator?

Yes, it can run a standard refrigerator for 2–4 hours, depending on the fridge’s efficiency and usage pattern.

8. What inverter size is suitable for a 12V 100Ah battery?

A 600VA to 900VA inverter is ideal for a single 12V 100Ah battery to ensure safe and efficient operation.

9. How long does a 12V 100Ah battery last?

With proper charging and maintenance, a tubular battery lasts 5–7 years, SMF lasts 3–4 years, and lithium batteries can last 8–10 years.

10. Is a 12V 100Ah battery good for frequent power cuts?

Yes, especially tubular batteries, which are designed to handle frequent discharge and recharge cycles efficiently.
